Ideal machine for single and multicolour printing of small, medium and large newspapers & periodicals, publications, magazines, books and job work.

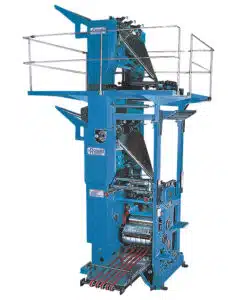

RONALD standard folder has a rated Capacity of 16,000 copies/hour for 1/2 page fold* . This folder can produce broad sheet and tabloid newspapers with optional attachments for magazine/ quarter fold and double parallel/ digest fold (with cross slitting/ perforation) for Book Production. RONALD standard folder is designed for quick change over from half to quarter page or double parallel fold. It can handle 1 to 4 webs for production of 4 to 16 pages of broadsheet newspaper. For quarter fold 2 webs can be handled depending upon the gsm of paper. We are Tabloid Printing Machines Exporter, Supplier.
- Jaw type 1:2
- Electronic copy counter
- Kicker for 25 copies
- Oil bath lubrication for drive side gears
- Main drive shaft coupled with keyway hub and Thomas coupling at cylinder height ensures minimum backlash and smooth power transmission.
- Forward and reverse inching
- Slitter or perforator on RTF roller
Optional
- Quarter folder
- Stacker
- Perforator or slitter on nipping roller
- Digest folder with cross slitting or perforation
- Web under lead system Cross perforator
- Clutch on folder
- Cut-off control on folder for maximum four webs
- Conveyor extensions as per requirements
- Pneumatic on / off on R.T.F.
- Online Gluing
- Online Stitcher
Technical Specifications of Standard Folder
| ||||||||||||||||||||||||||||||
Note : Special cut-off also available against order
Technical Specifications
| ||||||||||||||||||||||||||||||
- Operating speeds for optimum production will vary with paper quality, gsm, size of product, no. of webs and pressmanship.
- Stocks handled : Paper Reel (Uncoated) 38-80 gsm.
- Ronald Web Offset Pvt Ltd. reserves the right to vary specifications of RONALD presses without prior information resulting from its policy of consistently improving and updating of all products.
configuration of printing
